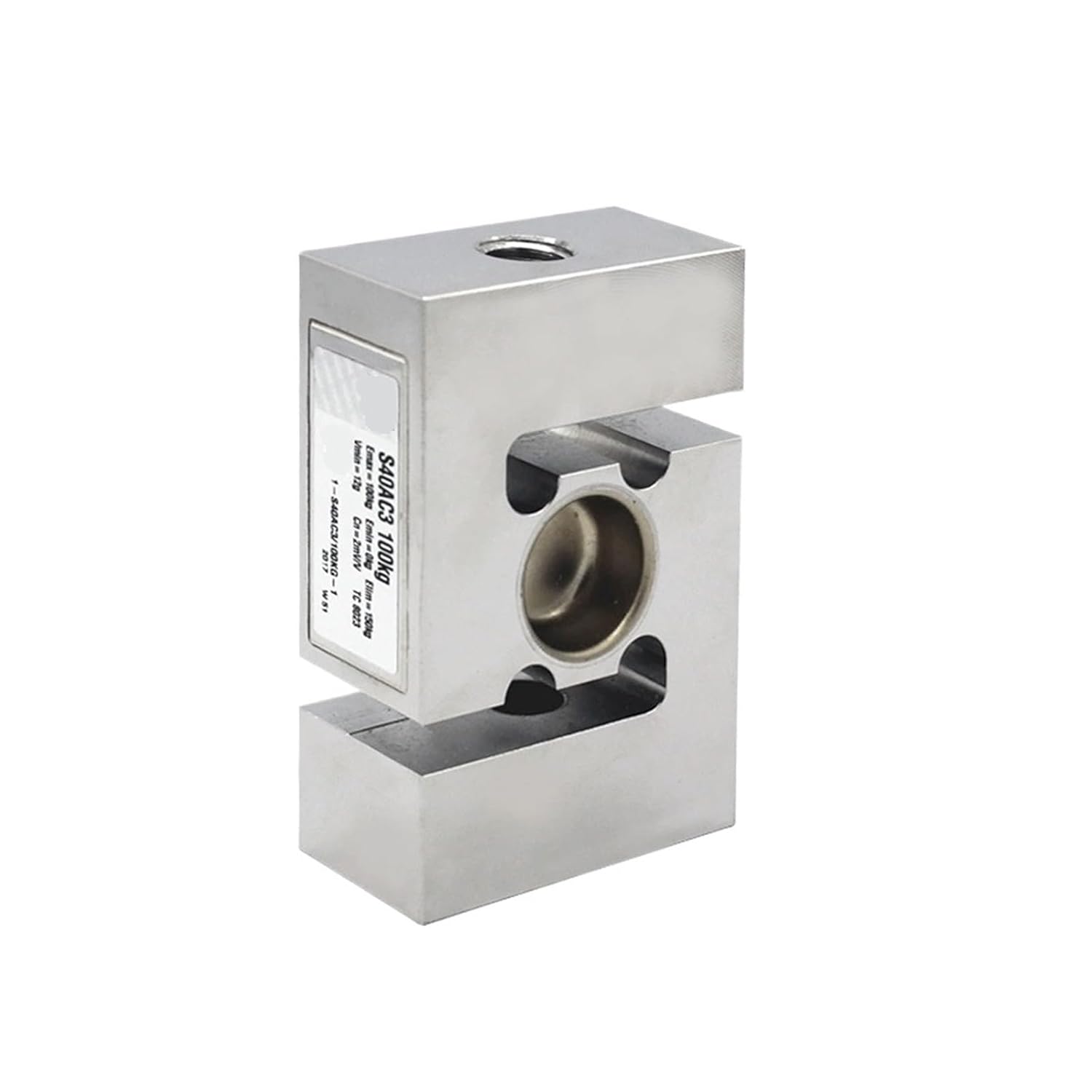

S40AC3 S Type Load Cell Tension/Pressure Sensor Hook Scale, Industrial Assembly Line, Material Testing Machine Experiment

Is_customized : YesTheory : Resistance SensorMaterial : MetalType : Magnetic SensorOutput : Analog SensorOrigin : De(origin)Use : Pressure SensorType : Load Cell/Force SensorOIML R60 : D1,C3vmin : 0.0286(D1),0.012(C3)Sensitivity : 2Tolerance on sensitivity : ±0.25TC Span : ±0.0500(D1),±0.0140(C3)TC Zero : ±0.0400(D1),±0.0170(C3)Non-linearity : ±0.0500(D1),±0.0180(C3)Hysteresis error : ±0.0500(D1),±0.0170(C3)Zero balance : 0.01(30mins Creep\MDLR) : ±0.0500(D1),±0.0245/±0.0166(C3)Input resistance : 350Output resistance : 350±1.5Reference excitation voltage : 5Maximum excitation voltage : 12Insulation resistance : >5Nominal temperature range : -10-+40Operating temperature range : -30-+70Storage temperature range : -50-+85Safe load limit : 150Breaking load : 300Emax(Max. capacity) : 50KG(D1),100KG(D1),200KG(D1),500KG(D1),1T(D1),2T(D1),3T(D1),5T(D1),50KG(C3),100KG(C3),200KG(C3),500KG(C3),1T(C3),2T(C3),3T(C3),5T(C3),50,100,200,500,1000,2000,3000,5000Deflection at emax, ±15% : 0.15,0.15,0.15,0.15,0.25,0.38,0.38,0.46Weight, approx : 0.6,0.7,0.7,1.1,1.1,1.7,1.7,2.2protection class acc. to EN60529 : IP68 (test condition 1m water column/100h)Material Measuring body Cable entrance Cable sheath : Stainless steel,Stainless steel/Viton,PVC

• YCCMSM13 S40AC3 S Type Load Cell Tension/Pressure Sensor Hook Scale, Industrial Assembly Line, Material Testing Machine Experiment
